Murphy bed Sizes
We carry and build two typs of murphy beds. The Spring version and Piston Version.
A majority of our beds will use the Spring system. Occasionally the piston system is required.
All Projections are from the back wall to the farthest point on the leg.
Spring System

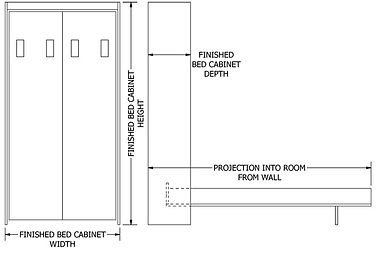

Spring Vertical (Upright version)
Twin: 85 1/4"h x 44 1/2"w x 16"d Projection 85"
Full: 85 1/4"h x 59 1/2"w x 16"d Projection 85"
Queen: 90 1/4"h x 65 1/2"w x 16"d Projection 90"
King: 90 1/4"h x 81 1/2"w x 16"d Projection 90"
Piston System
Piston Vertical (Upright version)
Twin: 82 1/8"h x 44 7/8"w x 15 7/8"d Projection 82"
Full: 82 1/8"h x 59 7/8"w x 15 7/8"d Projection 82"
Queen: 87 1/8"h x 65 7/8"w x 15 7/8"d Projection 87"
King: 87 1/8"h x 81 7/8"w x 15 7/8"d Projection 87"

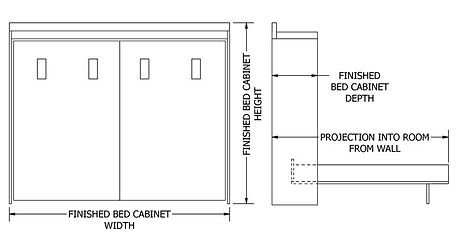

Spring Horizontal (Sideways version)
Twin: 49 3/4”h x 80"w x 16”d Projection 49”
Full: 64 3/4"h x 80"w x 16"d Projection 64"
Queen: 70 3/4"h x 85"w x 16"d Projection 70"
Piston Horizontal (Sideways version)
Twin: 47 3/8"h x 81"w x 15 7/8"d Projection 46"
Full: 62 5/16"h x 81"w x 15 7/8"d Projection 60"
Queen: 68 5/16"h x 86"w x 15 7/8"d Projection 66"

Spring System
Spring Vertical (Upright version)
Twin: 85 1/4"h x 44 1/2"w x 16"d Projection from back wall to end of the leg is 85"
Full: 85 1/4"h x 59 1/2"w x 16"d Projection from back wall to end of the leg is 85"
Queen: 90 1/4"h x 65 1/2"w x 16"d Projection from back wall to end of the leg is 90"
King: 90 1/4"h x 81 1/2"w x 16"d Projection from back wall to end of the leg is 90"
Spring Horizontal (Sideways version)
Twin: 49 3/4”h x 80"w x 16”d Projection from back wall to end of the leg is 49”
Full: 64 3/4"h x 80"w x 16"d Projection from back wall to end of the leg is 64"
Queen: 70 3/4"h x 85"w x 16"d Projection from back wall to end of the leg is 70"
Piston System
Piston Vertical (Upright version)
Twin: 82 1/8"h x 44 7/8"w x 15 7/8"d Projection from back wall to end of the leg is 82"
Full: 82 1/8"h x 59 7/8"w x 15 7/8"d Projection from back wall to end of the leg is 82"
Queen: 87 1/8"h x 65 7/8"w x 15 7/8"d Projection from back wall to end of the leg is 87"
King: 87 1/8"h x 81 7/8"w x 15 7/8"d Projection from back wall to end of the leg is 87"
Piston Horizontal (Sideways version)
Twin: 47 3/8"h x 81"w x 15 7/8"d Projection from back wall to end of the leg is 46"
Full: 62 5/16"h x 81"w x 15 7/8"d Projection from back wall to end of the leg is 60"
Queen: 68 5/16"h x 86"w x 15 7/8"d Projection from back wall to end of the leg is 66"
